Installation Example

Moon Lifter is used hanging in midair. Please select the installation jig that is compatible for your usage method.

Jib Moon Light

Jib Moon

Floor-mounted rail system

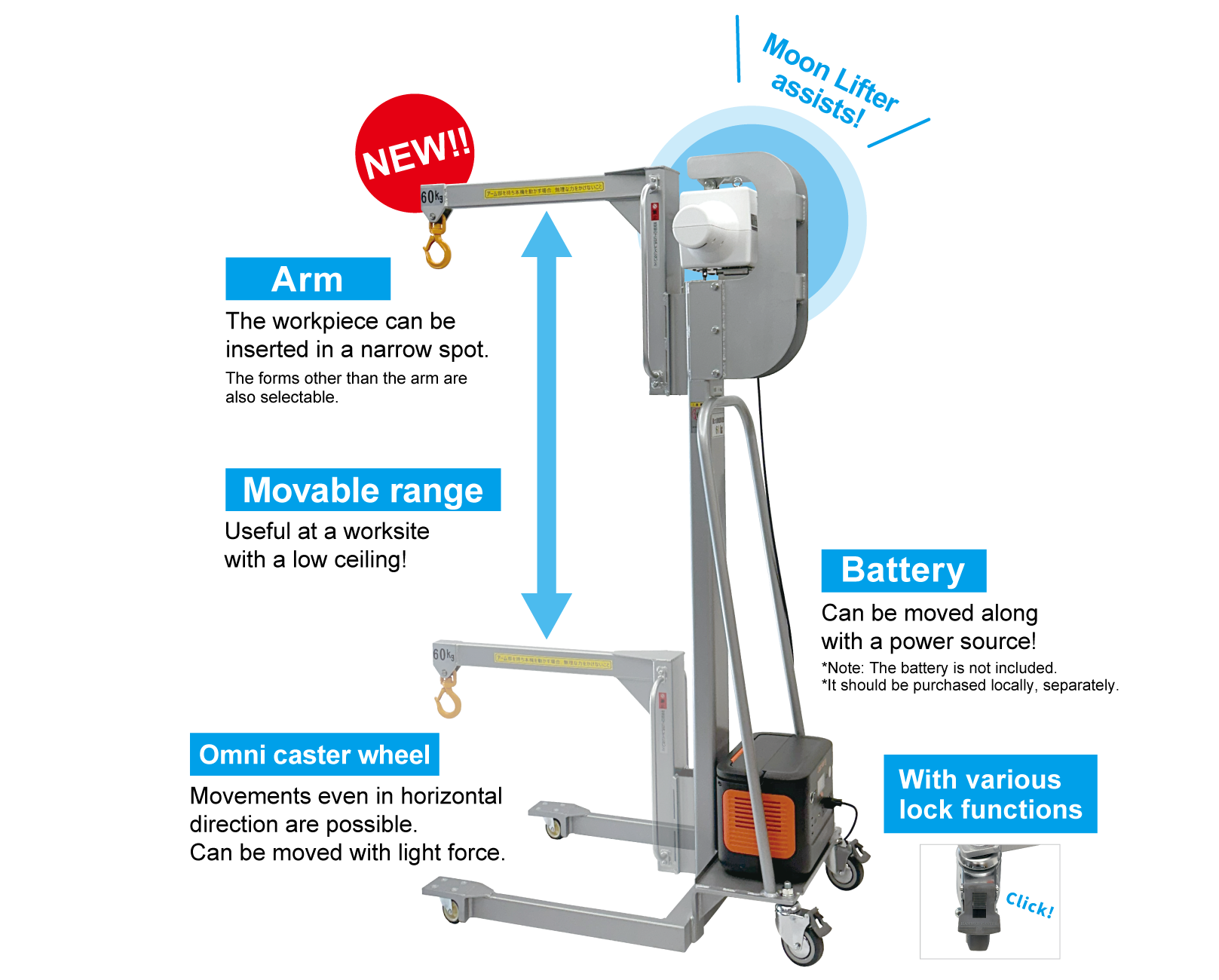

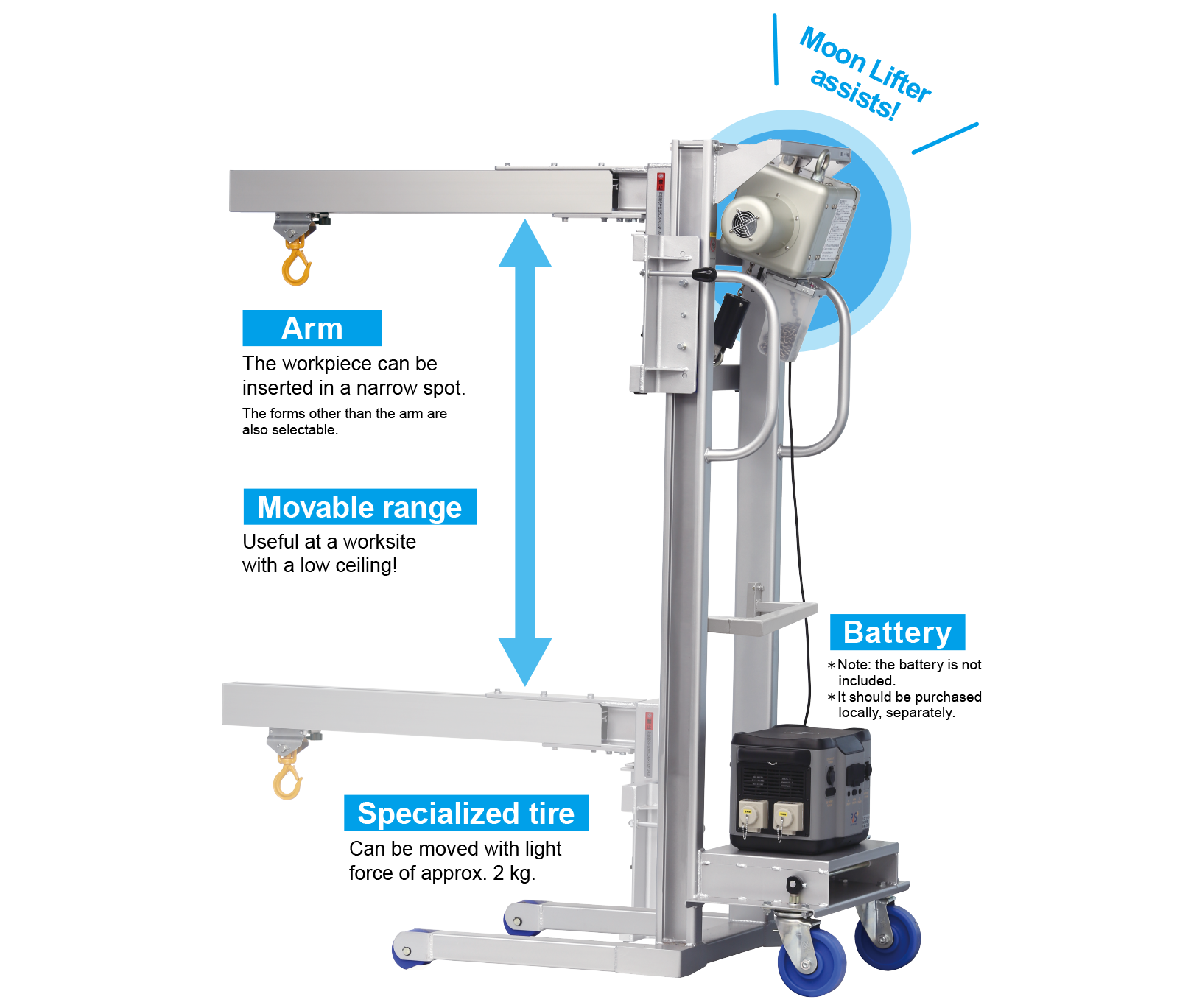

Jib Moon Light

Slightly smaller new model "Jib Moon Light" is newly released!
Moves lightly, so that it comes in handy in multiple locations. When you insert a workpiece into a narrow spot such as a shelf, Jib Moon Light will support your work strongly.

Possible to select a form that fits a workpiece

形状01

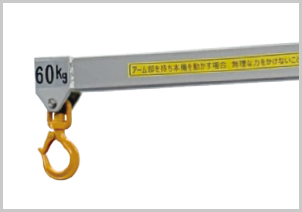

Arm

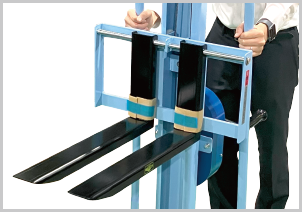

形状02
Forks

形状03
Plate

Maximum lifting load	60 kg (When MLS-80K is used)	Trolley movable range	N/A
Maximum lifting/lowering speed	250 mm/s (When MLS-80K is used)	Oscillation angle	N/A
Lift (From the center of the hook)	1160 mm (460 to 1620 mm from the floor)	Caster wheel	Front wheel: φ65 swivel caster wheel Rear wheel: φ100 swivel caster wheel
Overall height	1810 mm	Main unit weight	Approx. 60 kg (Including the weight of Moon Lifter; 9kg)
Overall width	610 mm	Lock function	Wheel & pivot lock
Overall length	1140 mm	Operating temperature range	-10 to +55℃
Turning radius	Approx. 600 mm	Recommended temperature range	0 to 40℃
Arm length	685 mm	Operating humidity range	80% RH or less (No condensation)

Change of the materials: Change the whole unit or the arm part to stainless steel; select the tires from the rubber, urethane or MC nylon.
The battery is not included. It should be purchased locally, separately. If you wish to use Jib Moon Light with AC power supply in place of a battery, be sure to place a 10 kg or heavier weight on the battery table.

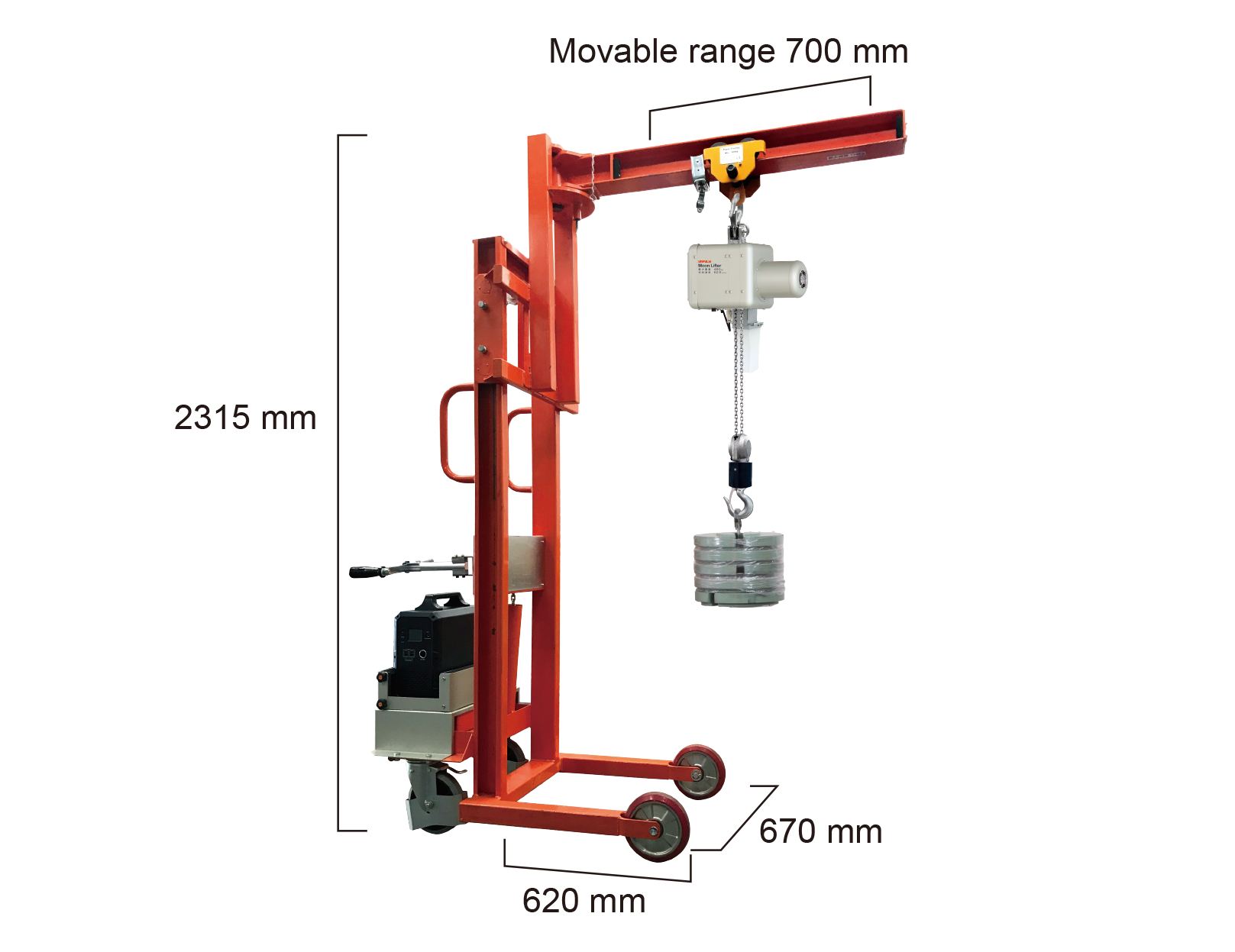

Jib Moon

When the ceiling is low, you need to use it in multiple locations, can’t install rail systems overhead, or want to insert a workpiece into a narrow spot… Jib Moon will fulfill these needs!

Only the domestic transport in Japan is available for this product.
(It is a customer's responsibility to make the export arrangements of the product.)

Even each part size is changeable

● Total length　● Arm length　● Leg length, height & width

Possible to select a form that fits a workpiece

形状01

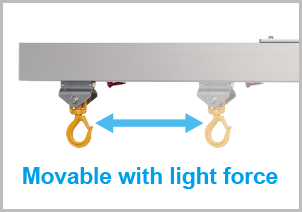

Arm

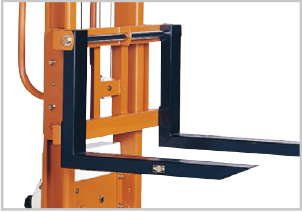

形状02
Forks

形状03

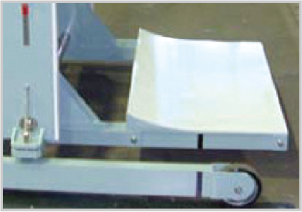

Plate

形状04

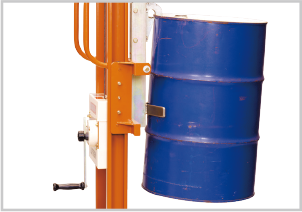

Clamp for
circular cylinder

Various lock functions

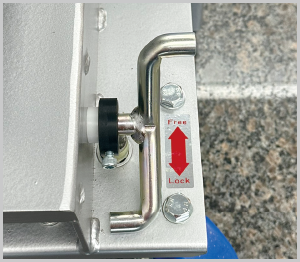

ロック機能01
Wheel lock

ロック機能02

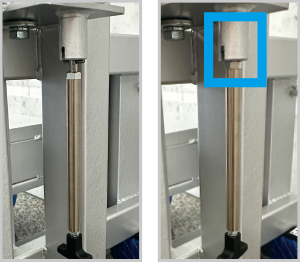

Oscillation lock

Maximum lifting load	80 kg	120 kg
Maximum lifting/lowering speed	250 mm/s	125 mm/s
Lift (From the center of the hook)	350 to 1610 mm	300 to 1560 mm
Overall height	1890 mm
Overall width	670 mm
Overall length	1645 mm
Turning radius	Approx. 1300 mm
Trolley movable range	560 mm	700 mm
Oscillation angle	±15°
Main unit weight (Including Moon Lifter)	Approx. 190 kg	Approx. 260 kg
Lock function	Installed with wheel lock & oscillation lock functions
Recommended temperature range	0 to 40℃
Operating humidity range	80% RH or less (No condensation)

The material of the arm part is the aluminum frame for the 80 kg specification and the steel frame for the 120 kg.
The material of the jib lift part is changeable to stainless steel.
